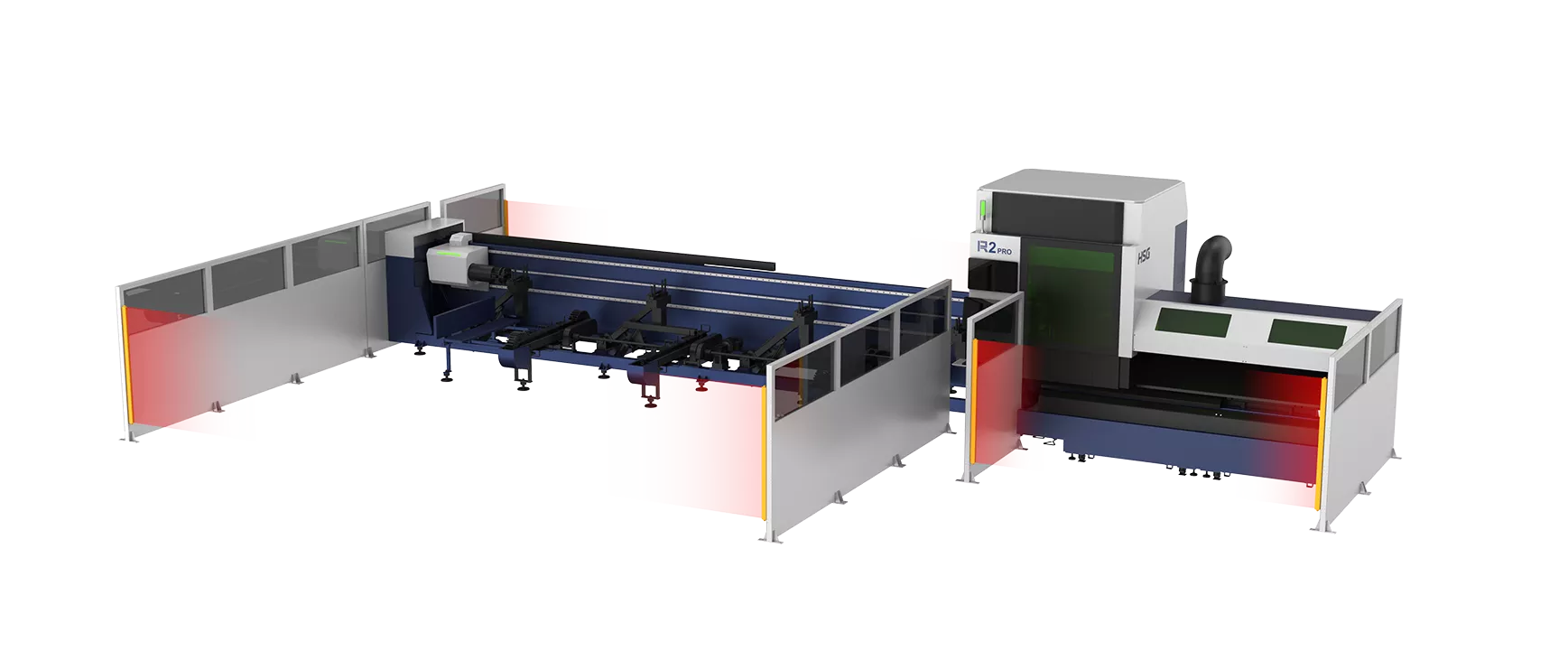

R2 Pro

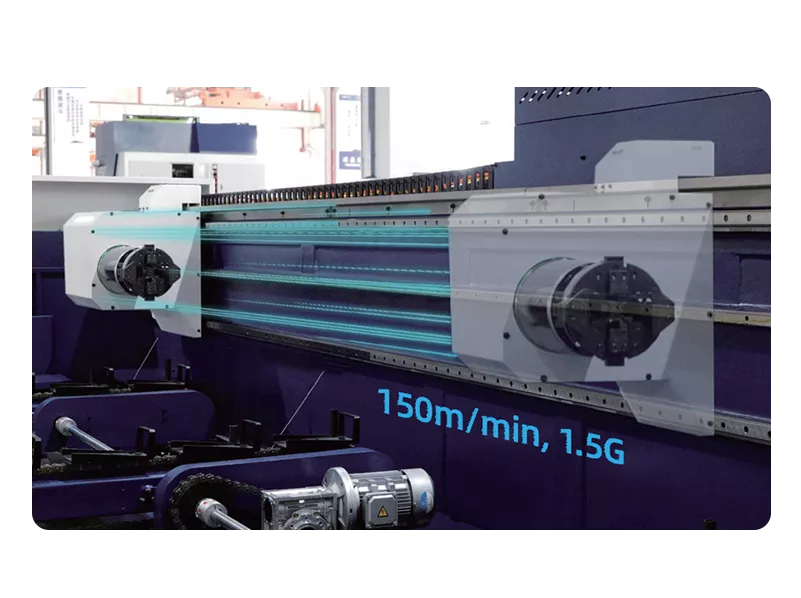

Shattering Efficiency Limits for Medium Tubes
Powered by a 140 r/min chuck speed, 150 m/min linkage speed, and 1.5G acceleration, this system offers exceptional motion performance to your production line. It delivers high-speed cutting capabilities comparable to specialized small-tube cutting machines, improving efficiency by 25% and eliminating production bottleneck.

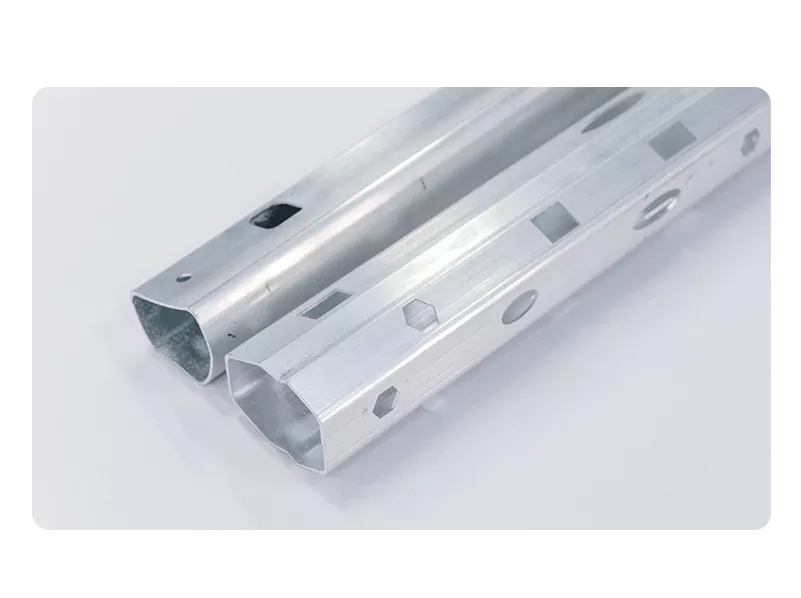

Ultimate Precision Control:
Accuracy Even on Irregular Tubes
Equipped with Dual-Scan dynamic correction (optional), this system tracks tube contours in real-time and automatically adjusts the cutting path. This eliminates consistency issues with irregular and roll-formed tubes, increasing the qualification rate from 70% to over 99%. Whether cutting extruded tubes (±0.1mm) or irregular tubes (±0.2mm), it ensures consistent stability even during high-speed operations.

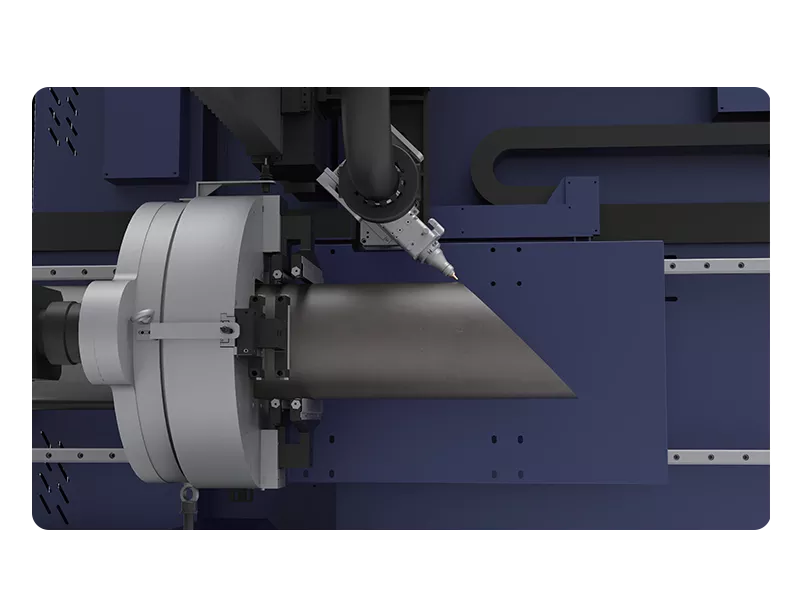

±45° Bevel Cutting（Optional）
R2 PRO offers flexible cutting within a ±45° bevel range, enabling precise joint preparation. Minimizing extra processing and helping you save time and labor.
Minimal Waste, Maximum Power:

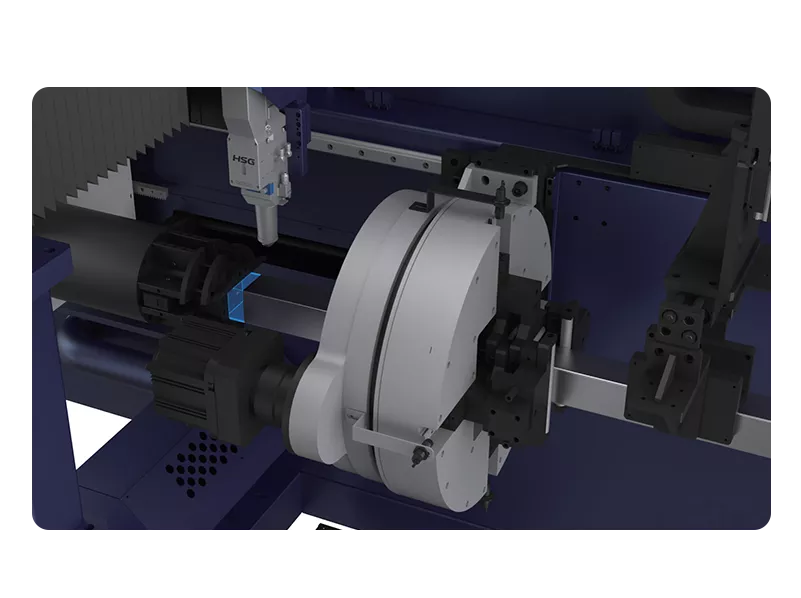

Short Tailings Cutting(Optional)
Optimized nesting algorithms maximize remnant utilization and minimize raw material waste. This directly reduces your cost-per-part, ensuring every inch of your tube inventory generates value.

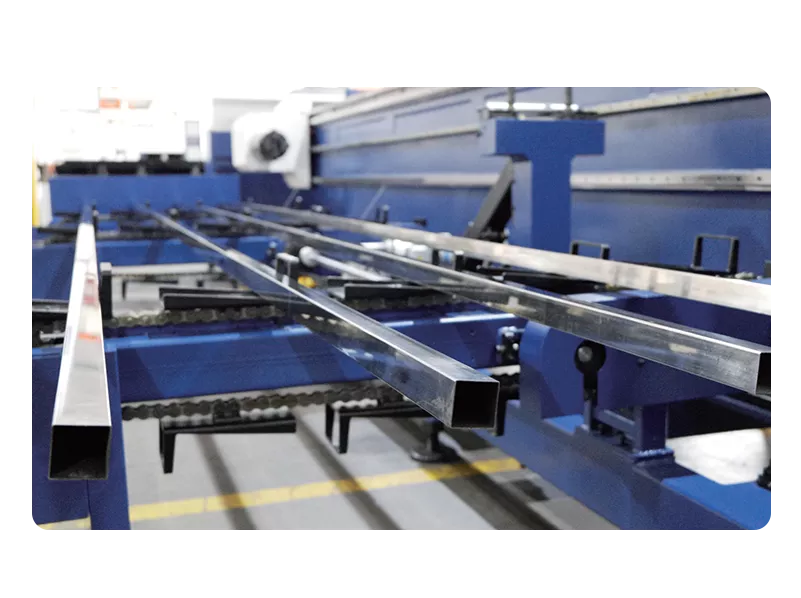

WindTech-Loading System (Optional)
Combined with the Zero-remnant Cutting Function, the multi-tube loading
system works seamlessly with the WindTech-Loading System.
It significantly saves time and enhances overall efficiency.
· φ20-220mm（Round tube）/ Side length 20-220mm(Rectangular tube) Processing Capacity:
· Tube length range: 4000mm-6500mm(R2 PRO) / 6000mm-9000mm(R2-90 PRO)
· Maxi single tube weight : 300kg

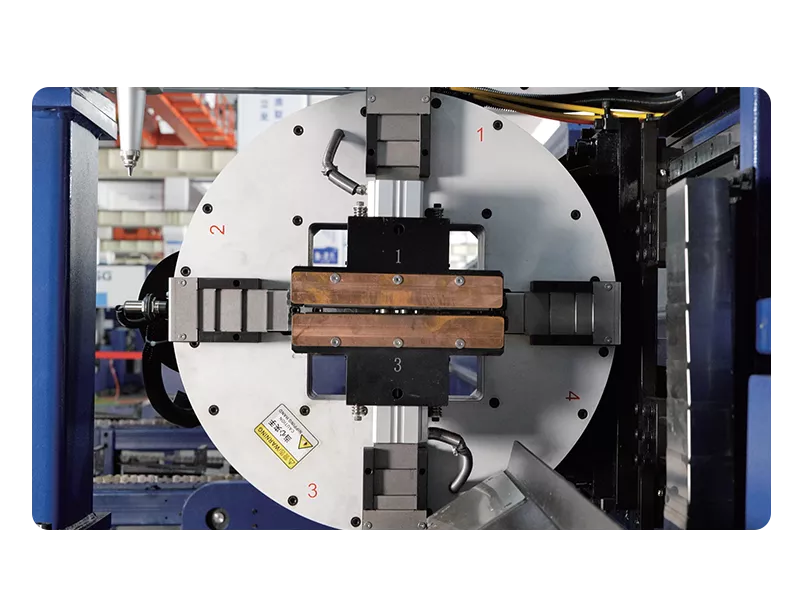

Dual Anti-burn Protection Structure
This system is equipped with a copper anti-burn structure and a stainless steel anti-burn dustproof cover, making it heat-resistant and extended the service life. Compared with standard chucks, it offers more stable performance and lower maintenance costs.
R2 Pro
Technical Parameters
- Model
- Power
- Cutting Capacity of Round Tube
- Cutting Capacity of Square Tube
- Cutting Capacity of Rectangular Tubes
- Low-pass Filter
- Max. Acceleration
- Max. Linkage Speed
- Max. Rotation Speed
- The Range of Tube Material
