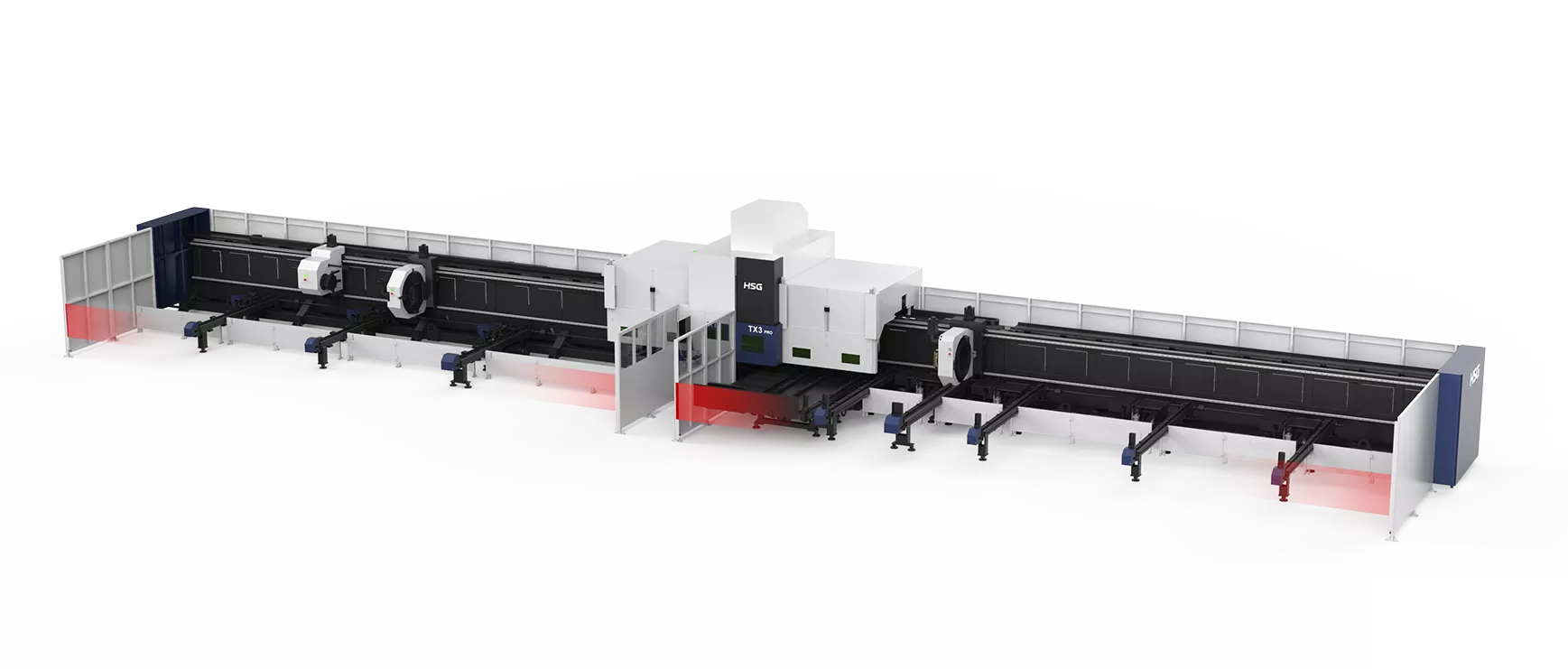

TX3 PRO

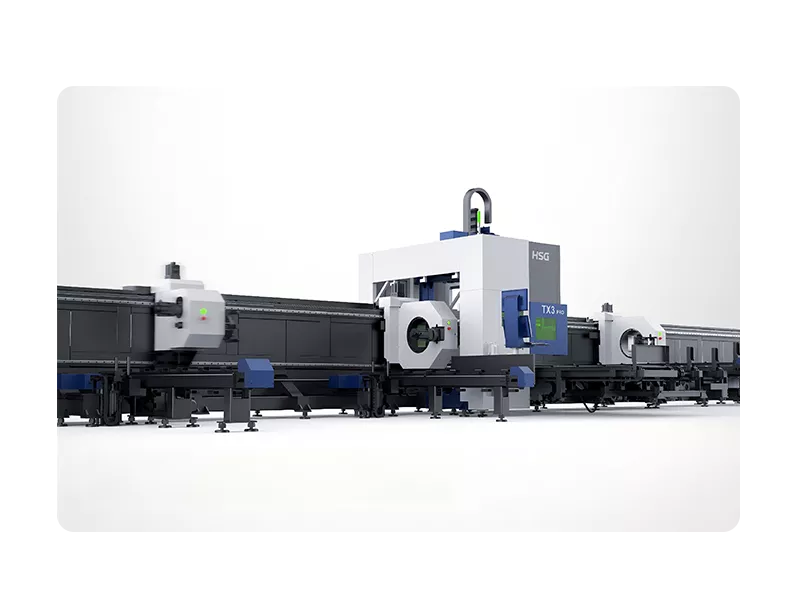

30%+ Increase in Cutting Efficiency
Peak Performance, Faster Delivery
100m/min linkage speed × 80r/min chuck rotation speed × 1.0G acceleration.
It significantly shortens the processing time, and the processing efficiency is greatly improved compared with the previous generation.
Deliver faster, gain an extra edge!
Processing Range: Φ20–360 mm*
Covers Large, Medium and Small Tubes
Handles both small and large tubes, with worry-free heavy load performance.
Previously, we needed one machine for small tube cutting and another for large tube cutting, but now the TX3 Pro handles both tasks all by itself.
*A dual-chuck must be selected and installed simultaneously.

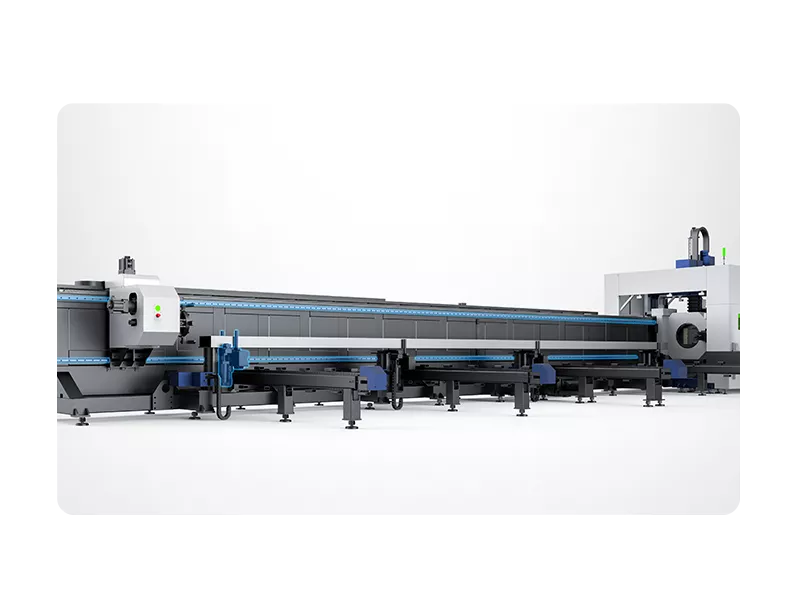

Maximum Load Capacity of Single Tube: 1600kg
Multi-stabilised Structure: Stability Is True Strength
Ultra-low center-of-gravity L-type side-mounted bed, heat-treated to be as stable as a rock;
45mm wide heavy-duty 3D dual-rail transmission system features more uniform force distribution and more stable heavy-load operation;
Integrated external follow-up support provides stable support throughout the whole process, requires no pit digging, and facilitates inspection and maintenance;
ABB+ Full-floating 3-chuck
Flexible Chuck Layout Enables Processing Mode Switching
The ABB+ chuck structure (1 barrel chuck + 2 through-hole chucks) lets the tube end pass through the C3 chuck, breaking length limits so long bevels or irregular profiles can be clamped without micro-bridges or secondary processing—boosting efficiency.

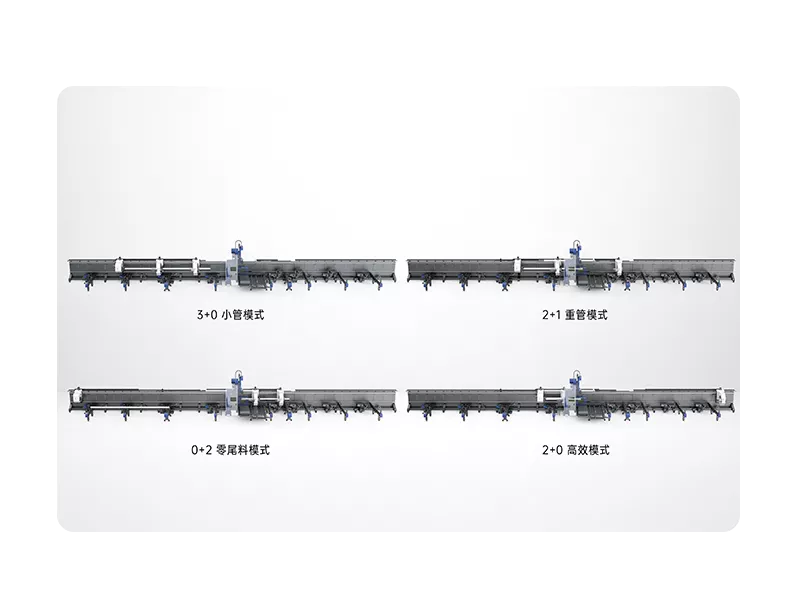

Depending on tube diameter and processing needs, it flexibly switches between small-tube mode, heavy-tube mode, zero-tail mode, and high-efficiency mode to suit various conditions.

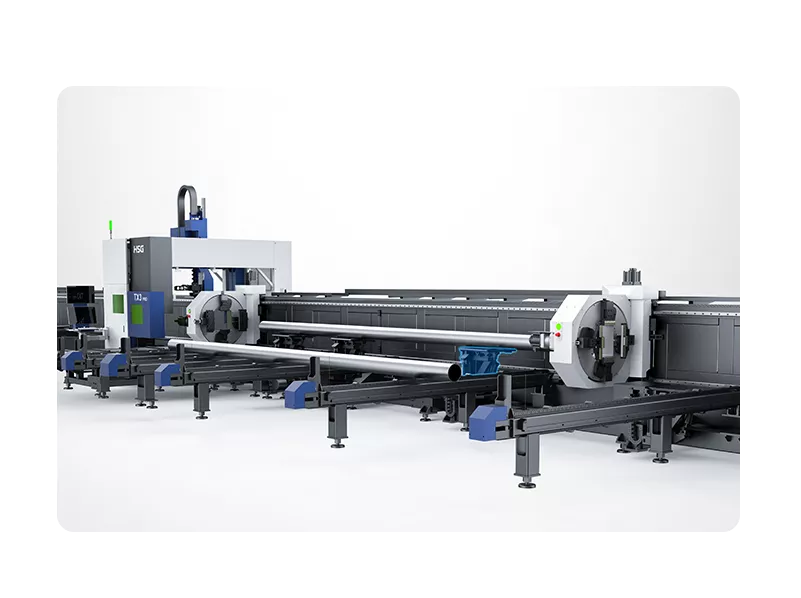

Anti-roll Safe Lifting and Unloading
Save Labor Cost and Time
Using catch-type unloading, it stably supports heavy tubes; anti-roll grooves effectively prevent tube rolling, making unloading more stable, safer, and worry-free.
TX3 PRO
Technical Parameters
- Model
- Power
- Cutting Capacity of Round Tube
- Cutting Capacity of Square Tube
- Max Loading Capacity (Single)
- Max Linkage Speed
- Max Acceleration
- Bevel Cutting
- Twin Chuck
