TS2

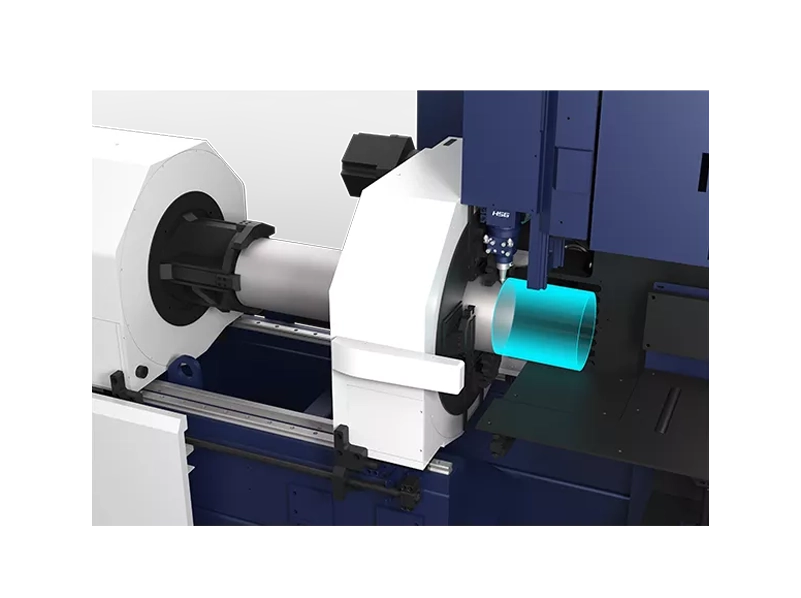

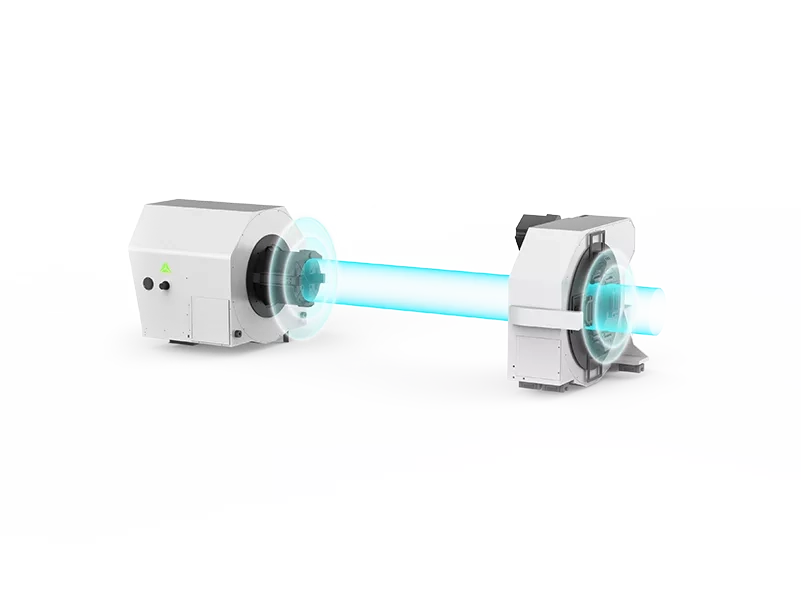

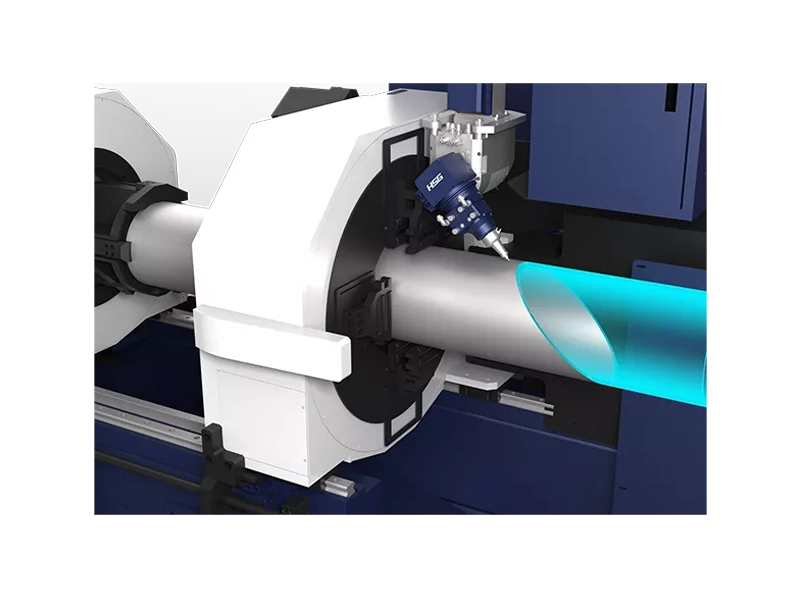

Rectangular-circle Pneumatic Chucks

* One-key clamping and automatic centering
* Clamp heavy tube stably by large and constant clamping force

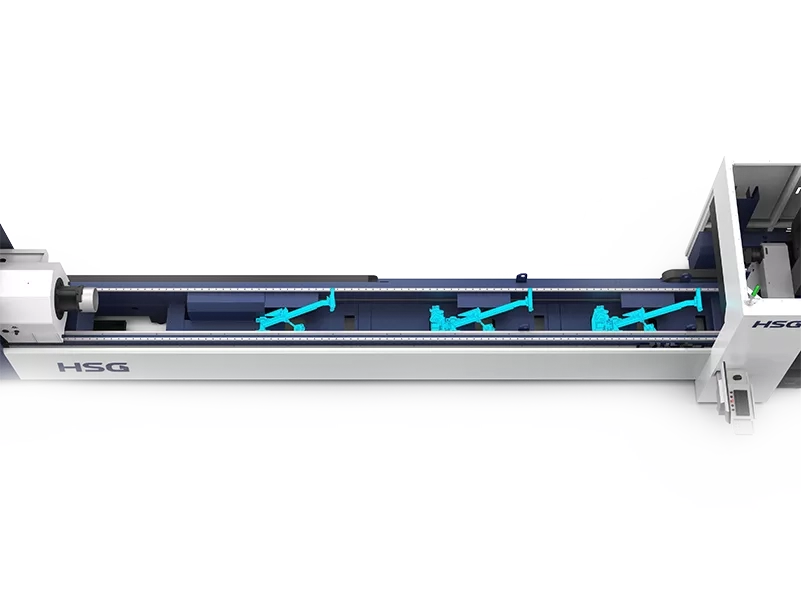

* Special supporting frame can prevent tubes from sagging and deformation
* Expand clamping range of square tubes
Φ 240mm round tube ，≤ 240mm square tube

HSG laser cutting machine rectangular-circle pneumatic chucks
HSG laser cutting machine safety light curtain

Safety Light Curtain

It will give an alarm if any intruder is detected when chucks are working at high speed, to prevent any possible collision with the human body and protect both workers and the machine well.

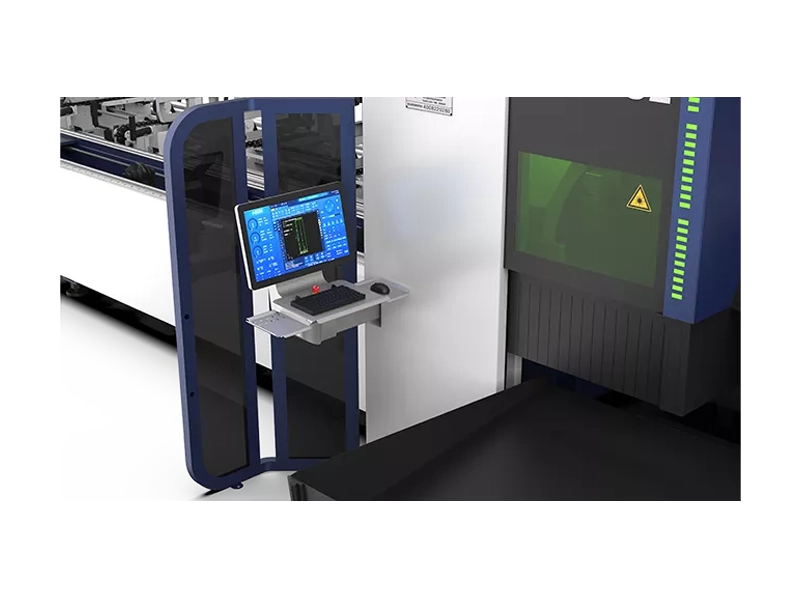

HSG-X
Bus Control System

HSG-X control system is bus-based and developed by HSG Laser. With intelligent and easy-to-operate service, it can offer users effective solutions to address problems of difficult operation, low efficiency and high costs.

HSG tube laser cutting machine

21.5-inch touch screen with concise interface

HSG tube laser cutting machine

Monitor core components in real time and give early alarm

HSG tube laser cutting machine

Detect tube deviation if needed

HSG tube laser cutting machine

Click to create processing report

HSG laser cutting machine bus control system

TS2

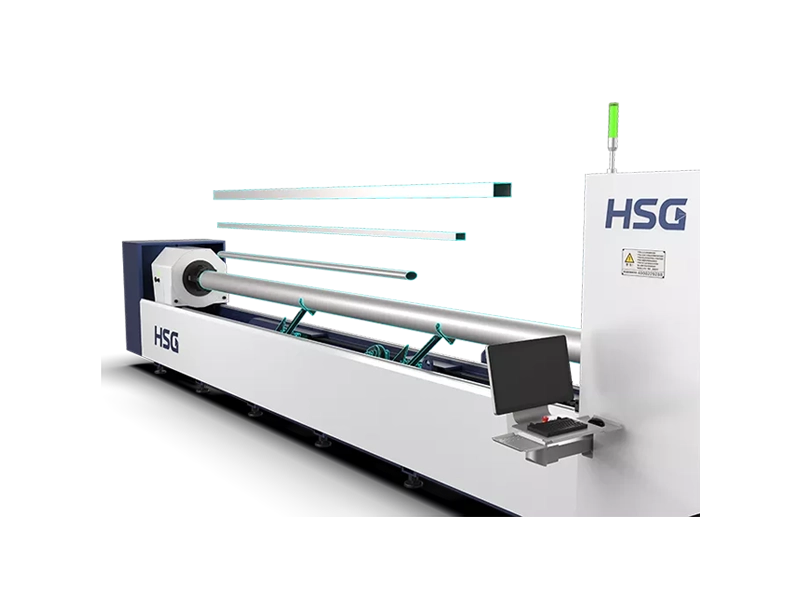

HSG Economical and High-speed Tube Fiber Laser Cutting Machine

Technical Parameters

  • Model
  • Power
  • X/Y-axis Positioning Accuracy
  • Cutting Capacity of Round Tube
  • Cutting Capacity of Square Tube
  • Weight of Single Tube
  • TS2
  • 1500W-6000W
  • ±0.03mm/m
  • Φ20-Φ240mm
  • □20*20-□240*240mm
  • 200kg
